DIGGER 0.8 MINI DIGGER
Enquire About This Product| 1 Day | 2 Day | 1 Week |
|---|---|---|
| 1 Day£100.00 / 1 Day | 2 Day£150.00 / 2 Day | Week £200.00 / Week |

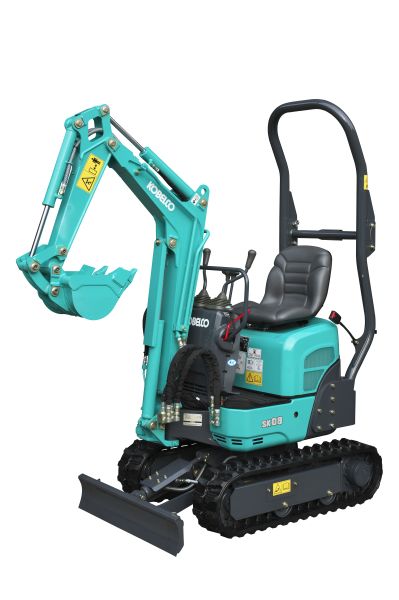

The supermini SK08 – a new dependable rising star
in the 0.8 ton class
The slim 730mm wide upper structure allows this machine to enter narrow passages with
retracted crawlers. The crawlers can be retracted to 680mm to avoid obstacle objects beneath
the machine.
10.0 kN powerful bucket digging force
The 7.7 kW high-output engine delivers 10.0 kN {1,015 kgf} of digging force – the top level
of the class.
72.5 centimetres tail swing radius
– helpful in small spaces
The tail overhang when swinging is only 30.5 cm. This allows smooth work even right next to a wall.
Maximum 310 mm outside-crawler digging width Dirt
1. Do not attempt to lift or hold any load that is greater than these lift capacities at their speci ed lift point radius and heights. The weight of all accessories must be deducted from the above lift capacities.
2. Lift capacities are based on machine standing on level, rm, and uniform ground. User must make allowance for job conditions such as soft or uneven ground, out of level conditions, side loads, sudden stopping of loads,
hazardous conditions, the experience of personnel, etc.
3. Arm top de ned as lift point.
4. The above lifting capacities are in compliance with ISO 10567. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Lifting capacities marked with an asterisk (*) are limited by hydraulic capacity rather
than tipping load.
5. Operator should be fully acquainted with the Operators and Maintenance Instructions before operating this machine. Rules for the safe operation of equipment should be adhered to at all times.
6. Lift capacities apply to only machines as originally manufactured and normally equipped by KOBELCO CONSTRUCTION MACHINERY CO., LTD.
All prices quoted are plus VAT
